using ClusterDepth
using Random
using CairoMakie
using UnfoldSim
using StatsBase
using Distributions
using DataFrames
using Unfold
using UnfoldMakie

How to use the ClusterDepth multiple comparison correction

Simulating test-data

Let's setup an EEG simulation using UnfoldSim.jl. We simulate a one factor 1x2 design with 20 subjects, each with 40 trials

n_subjects = 20
design = MultiSubjectDesign(
    n_subjects=n_subjects,
    n_items=40,
    items_between=Dict(:condition => ["car", "face"]),
)
first(generate_events(design), 3)

Next we define a ground-truth signal based on a Linear Mixed Model.

We simulate a P100, a N170 and a P300 - but an effect only on the N170

p1 = MixedModelComponent(;
    basis=UnfoldSim.p100(; sfreq=250),
    formula=@formula(0 ~ 1 + (1 | subject)),
    β=[1.0],
    σs=Dict(:subject => [1]),
);
n170 = MixedModelComponent(;
    basis=UnfoldSim.n170(; sfreq=250),
    formula=@formula(0 ~ 1 + condition + (1 + condition | subject)),
    β=[1.0, -0.5], # condition effect - faces are more negative than cars
    σs=Dict(:subject => [1, 0.2]), # random slope yes please!
);

p300 = MixedModelComponent(;
    basis=UnfoldSim.p300(; sfreq=250),
    formula=@formula(0 ~ 1 + condition + (1 + condition | subject)),
    β=[1.0, 0], ## no p300 condition effect
    σs=Dict(:subject => [1, 1.0]), # but a random slope for condition
);

data, events = simulate(
    MersenneTwister(1),
    design,
    [p1, n170, p300],
    UniformOnset(; offset=500, width=100),
    RedNoise(noiselevel=1);
    return_epoched=true,
)
times = range(0, stop=size(data, 1) / 250, length=size(data, 1));

Fit a model to each subject

We now have data, but no multiple comparison problem yet - we have to fit one analysis regression model to each time-point of each subject. Thereby, we perform 113 tests and would (without multiple testing correction) expect 5-6 samples to be significant, even if there is no true effect (but there is one ;)).

models = map(
    (d, ev) -> (
        fit(UnfoldModel, @formula(0 ~ 1 + condition), DataFrame(ev), d, times),
        ev.subject[1],
    ),
    eachslice(data; dims=3),
    groupby(events, :subject),
);

Progress:   2%|▊                                        |  ETA: 0:00:19
Progress: 100%|█████████████████████████████████████████| Time: 0:00:00

now we can inspect the data easily, and extract the face-effect

function add_subject!(df, s)
    df[!, :subject] .= s
    return df
end
allEffects =
    map(
        (x) ->
            (effects(Dict(:condition => ["car", "face"]), x[1]), x[2]) |>
            (x) -> add_subject!(x[1], x[2]),
        models,
    ) |> e -> reduce(vcat, e)

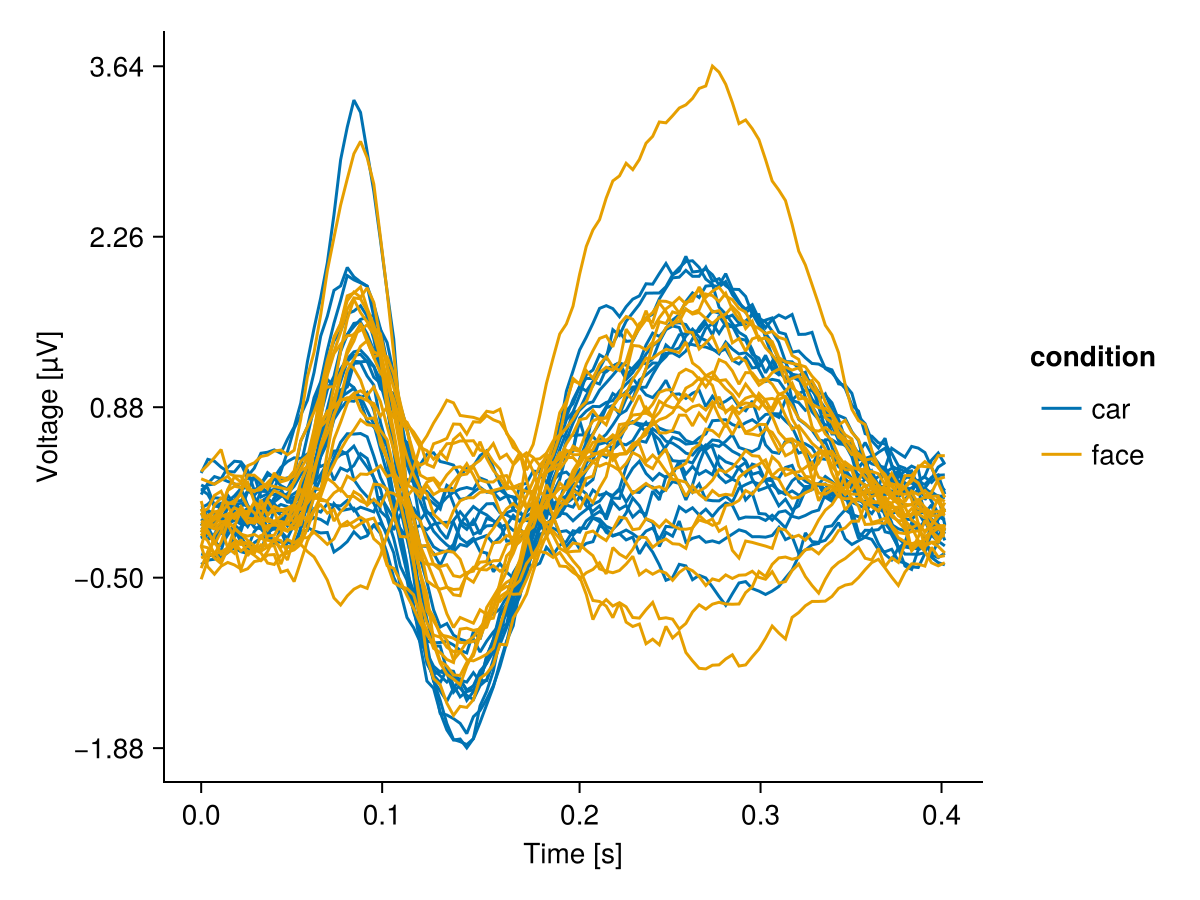

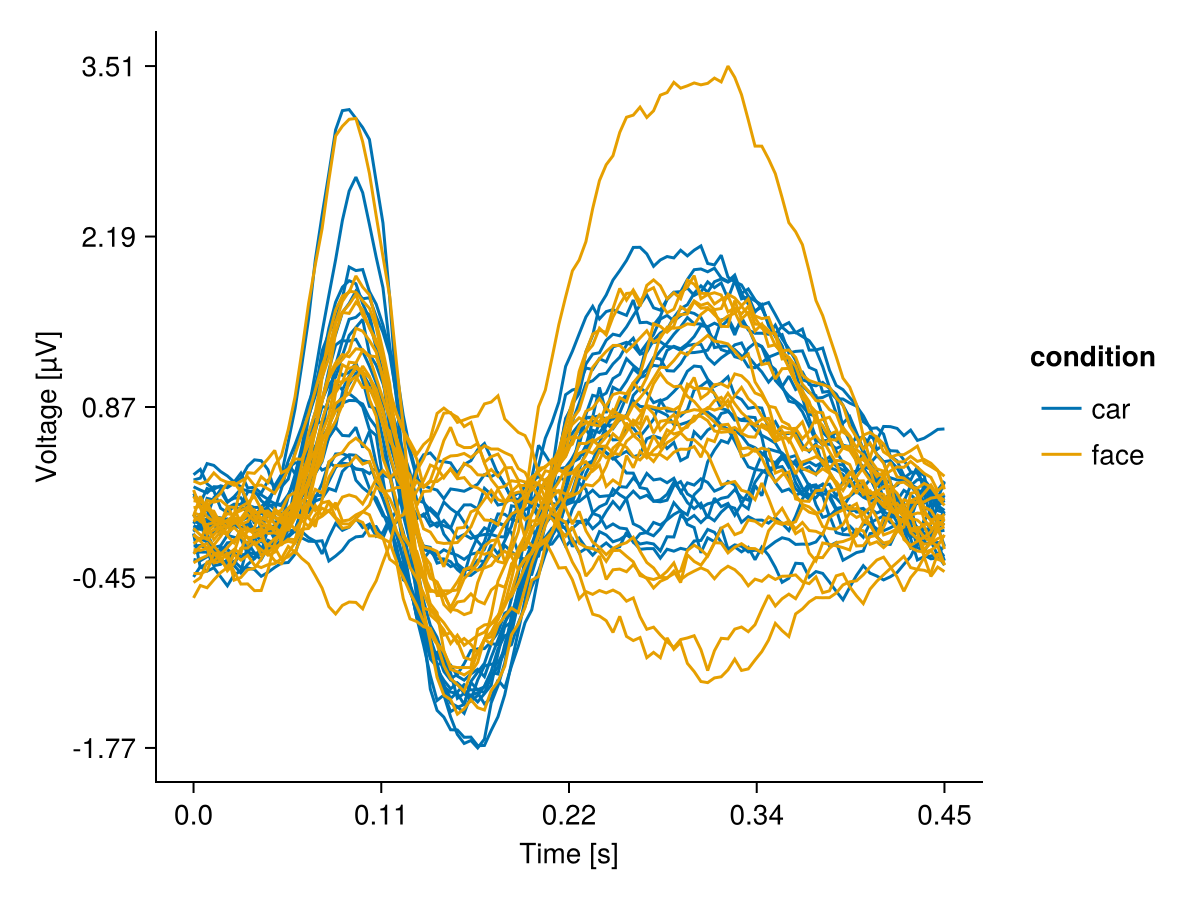

plot_erp(allEffects; mapping=(color=:condition, group=:subject))

Every line is from one subject, the color indicates our two conditions.

It is easier to see potential differences if we would plot the difference:

First we extract all coefficients in a nice, tidy DataFrame

allCoefs =
    map(m -> (coeftable(m[1]), m[2]) |>
             (x) -> add_subject!(x[1], x[2]), models) |>
    e -> reduce(vcat, e)

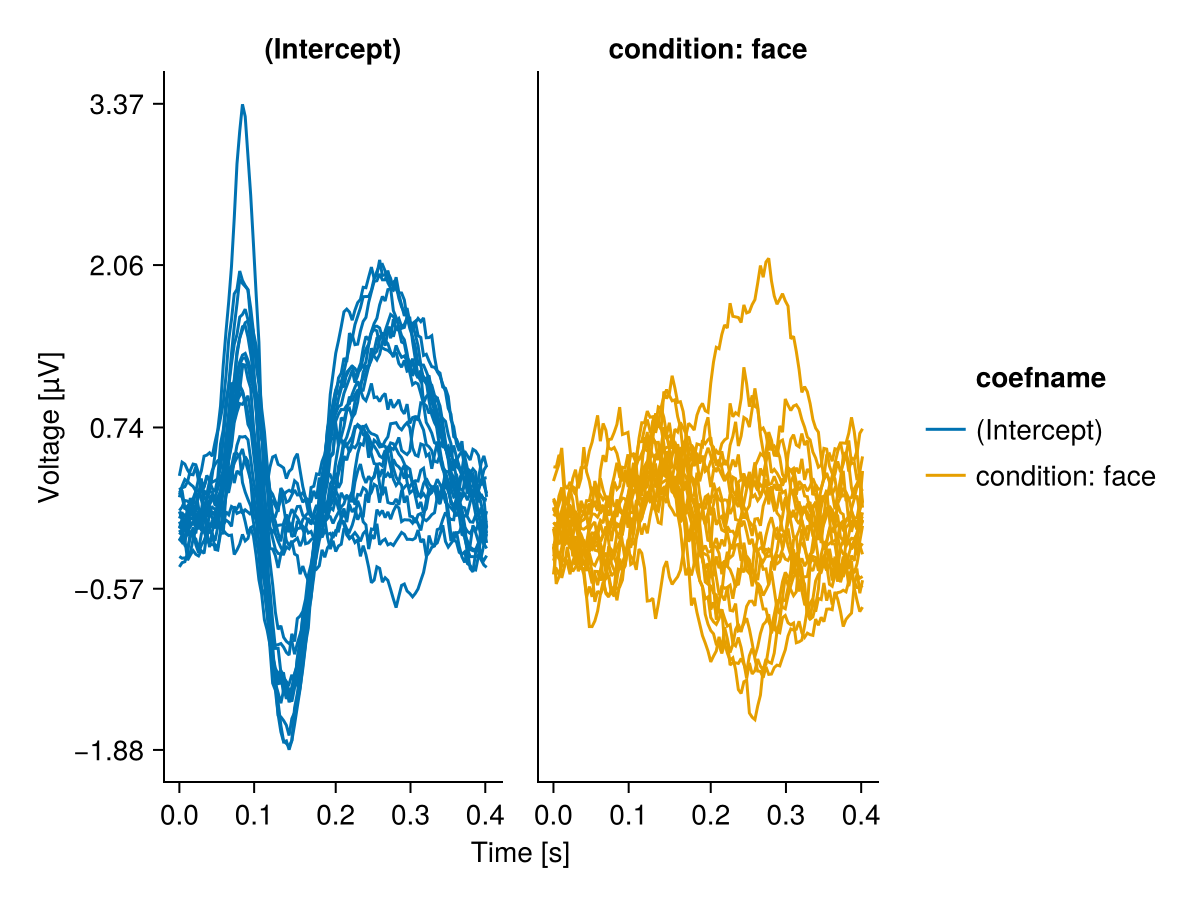

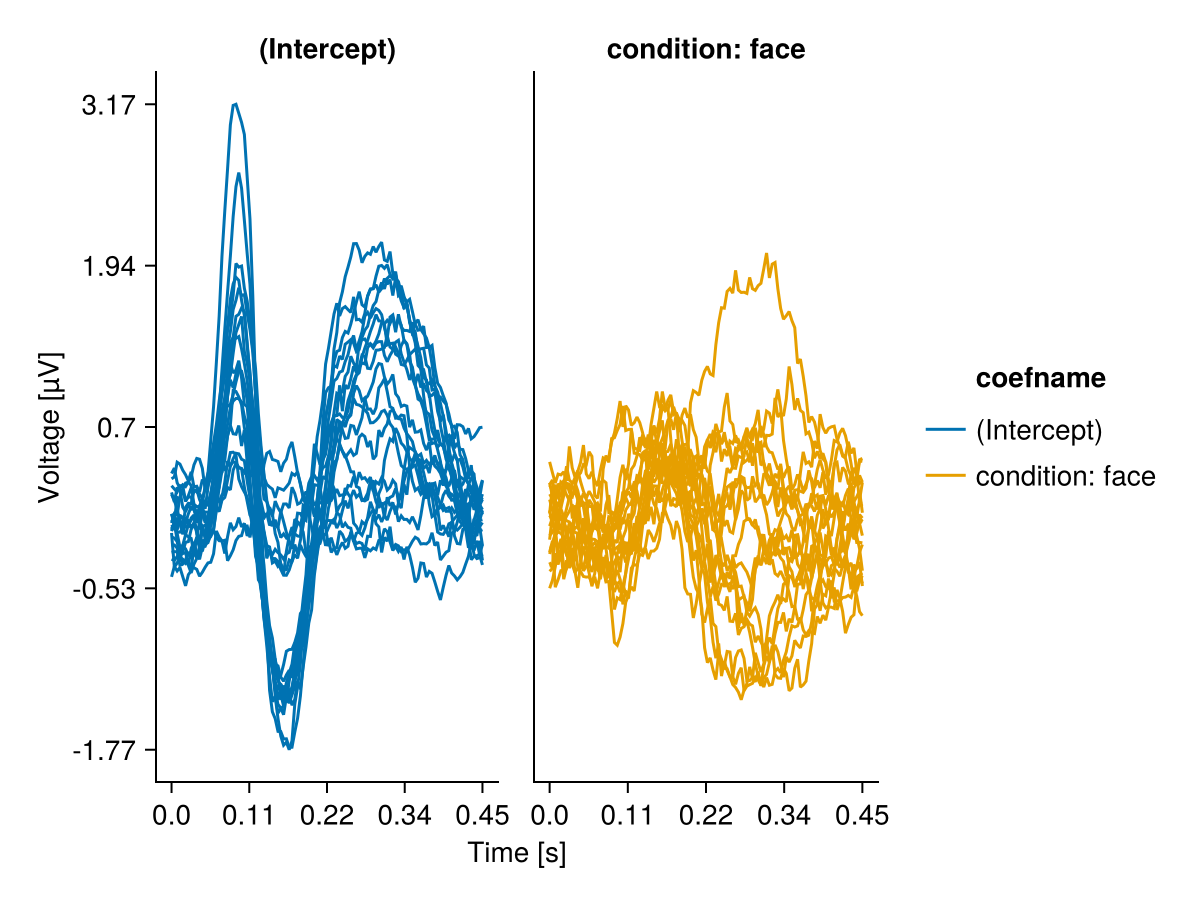

plot_erp(allCoefs; mapping=(group=:subject, col=:coefname))

This plot now shows the intercept (in our contrast-case the condition:"car" ERP), and the difference curve.

Next we unstack the tidy-coef table into a matrix and put it to clusterdepth for clusterpermutation testing

faceCoefs = allCoefs |> x -> subset(x, :coefname => x -> x .== "condition: face")
erpMatrix =
    unstack(faceCoefs, :subject, :time, :estimate) |> x -> Matrix(x[:, 2:end])' |> collect
summary(erpMatrix)

"113×20 Matrix{Union{Missing, Float64}}"

Clusterdepth

pvals = clusterdepth(erpMatrix; τ=quantile(TDist(n_subjects - 1), 0.95), nperm=5000);

┌ Warning: Your data shows a cluster that starts before the first sample, or ends after the last sample. There exists a fundamental limit in the ClusterDepth method, that the clusterdepth for such a cluster cannot be determined. Maybe you can extend the epoch to include more samples? This 'half'-cluster will be ignored and cannot become significant
└ @ ClusterDepth ~/work/ClusterDepth.jl/ClusterDepth.jl/src/cluster.jl:62

well - that was fast, less than a second for a cluster permutation test. not bad at all!

Plotting

Some plotting, and we add the identified cluster

first calculate the ERP

faceERP =
    groupby(faceCoefs, [:time, :coefname]) |>
    x -> combine(x, :estimate => mean => :estimate, :estimate => (x -> std(x) / sqrt(length(x))) => :stderror);

put the pvalues into a nicer format

pvalDF =
    ClusterDepth.cluster(pvals .<= 0.05) |>
    x -> DataFrame(
        :from => x[1] ./ 250,
        :to => (x[1] .+ x[2]) ./ 250,
        :coefname => "condition: face",
    )

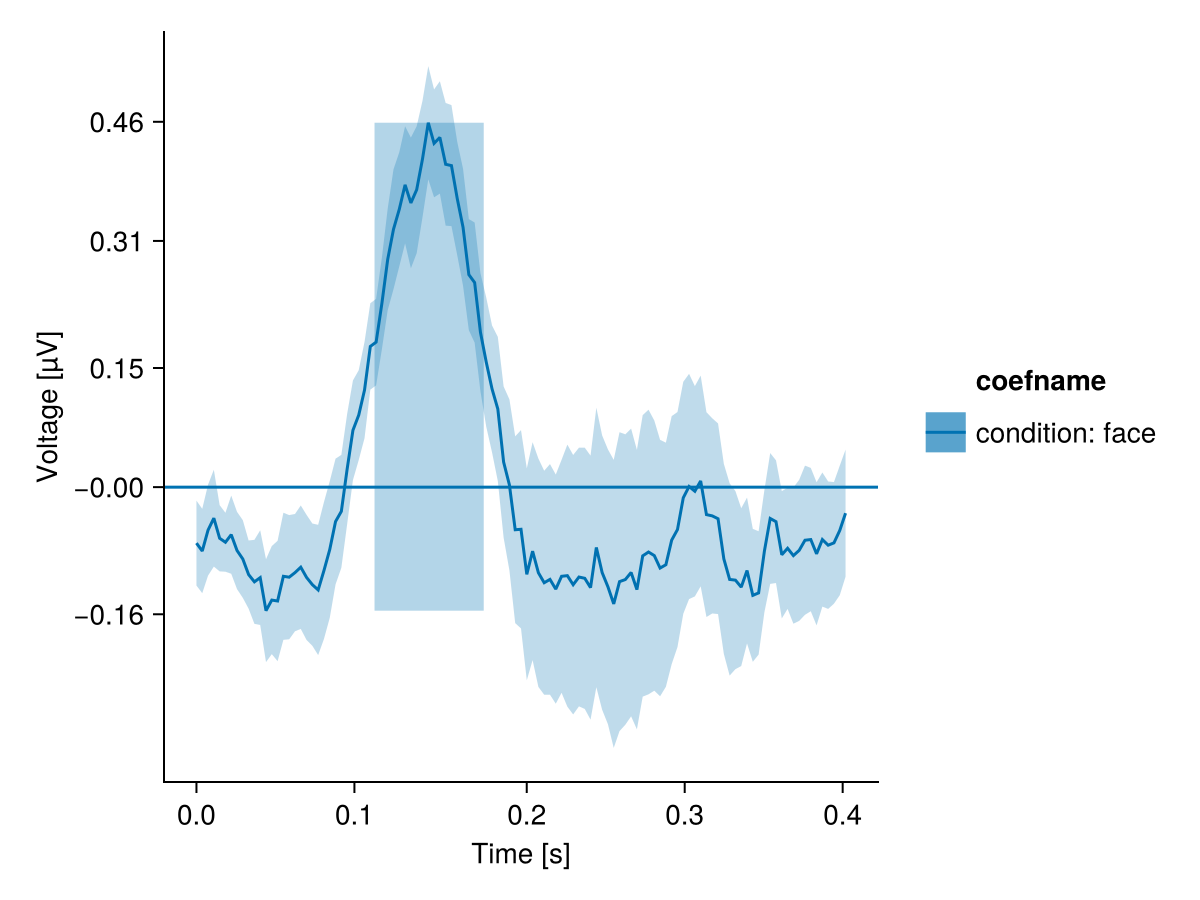

plot_erp(faceERP; stderror=true, significance=pvalDF)
hlines!([0])
current_figure()

Looks good! We identified the cluster :-)

This page was generated using Literate.jl.
